WEBER 32/34 DMTL - Carburetor Heat Shim Kit

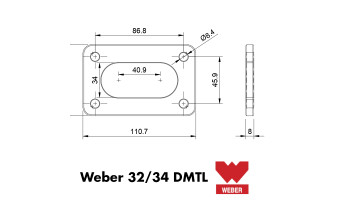

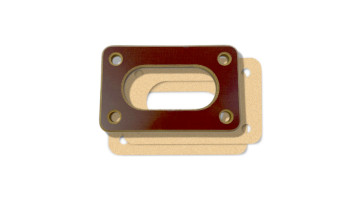

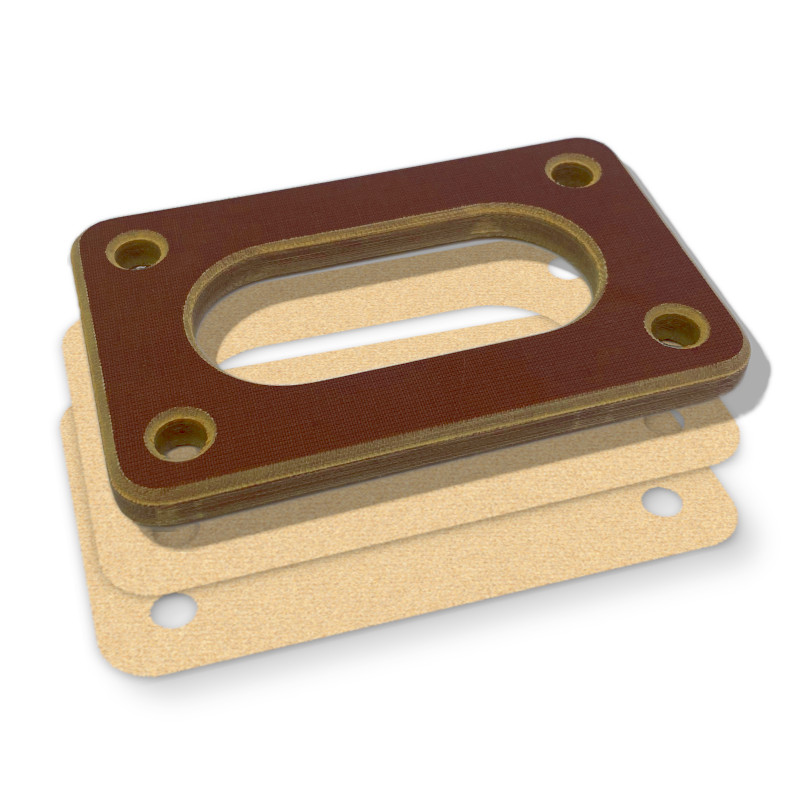

This 8 mm thick thermal spacer made of woven Bakelite (phenolic laminate) is perfectly flat and comes with two 0.5 mm thick paper gaskets. (Thicker gaskets available upon request.)

It has been fitted to many Ford engines, as well as Fiat engines with WEBER 32/34 DMTL carburetors.

This carburetor was also installed as a replacement for the Pierburg carburetors fitted to a large number of Volkswagen Group models from the late 20th century.

This spacer thermally insulates the carburetor body from the heat of the manifold, preventing the vaporlock effect during hot starts due to fuel boiling in the carburetor bowl.

Original WEBER 32/34 DMTL carburetor assemblies:

• Ford Escort Mk3 and Mk4 (1.3 and 1.6 CVH engines) (1980-1990)
• Ford Orion (1.3 and 1.6 CVH) (1983-1990)
• Fiat Panda 1000 / 750 (versions with FIRE engines) (1985-1990)
• Fiat Uno 45 / 55 / 60 (depending on versions and markets) (1985-1990)

Alternative WEBER 32/34 DMTL carburetor assemblies (Pierburg replacement):

• Volkswagen Golf Mk1 & Mk2 (1.3, 1.6, 1.8)
• Volkswagen Jetta (1.6 and 1.8)
• Volkswagen Passat B2 (engines 1.6 and 1.8)
• Seat Ibiza Mk1 (original VW engines)
