WEBER 32/36 DGV - Carburetor thermal shim kit

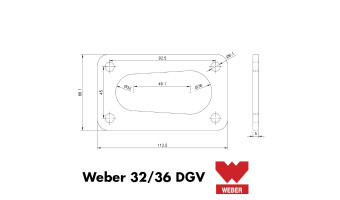

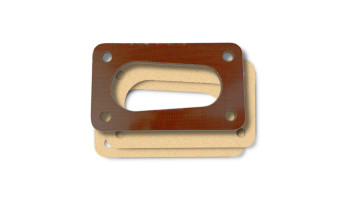

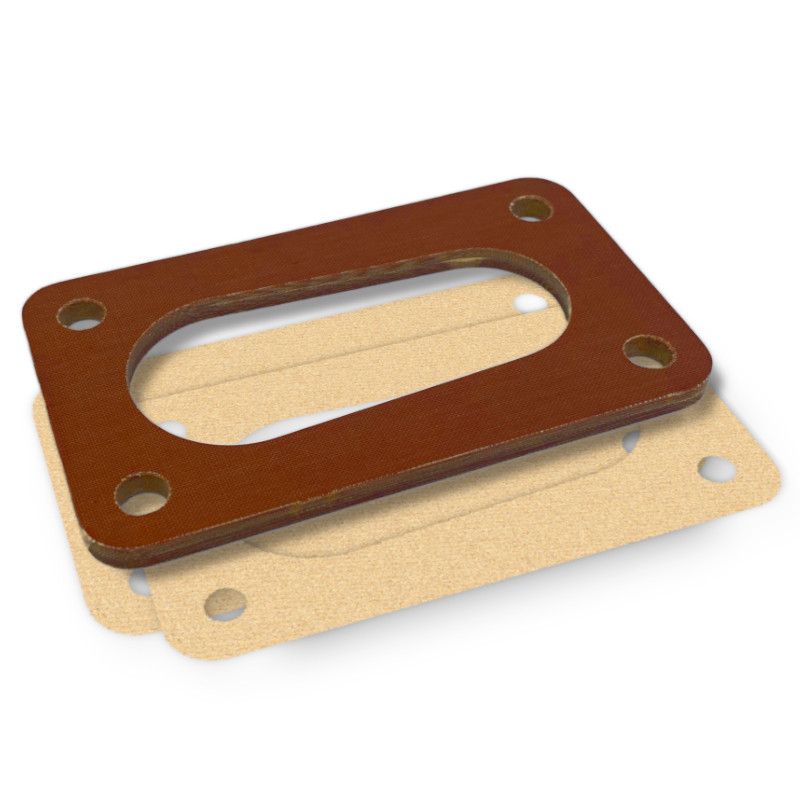

This 5 mm thick thermal spacer made of woven Bakelite (phenolic laminate) is perfectly flat and comes with two 0.5 mm thick paper gaskets. (Thicker gaskets available upon request.)

It has been fitted to many Ford Kent and Pinto engines, as well as Fiat and Lancia 1600 and 1800 models with WEBER 32/36 DGV carburetors. It thermally insulates the carburetor body from the heat of the manifold, preventing vaporlock during hot starts due to fuel boiling in the carburetor bowl.

This excellent twin-barrel carburetor has also been used as a replacement or pre-engineering tool for a large number of popular, sometimes exotic, models.

Original WEBER 32/36 DGV carburetor assemblies:

• Ford Escort Mk1 and Mk2 with Kent engines - (1968-1975)
• Ford Capri 1.6 and 2.0 OHC/Kent - (1966-1974)
• Ford Cortina with Kent and Pinto engines (1966-1976)
• Fiat 124 Spider / 131 (depending on engine)
• Lancia Beta (1600 and 1800 engines)

Alternative WEBER 32/36 DGV carburetor assemblies:

• Jeep CJ & Wrangler (4.2L AMC engines)
• Toyota Land Cruiser (FJ40, 2F engines)
• BMW 2002 (replacement for original Solex)
• Opel Kadett / Manta
• Volkswagen Golf I / Scirocco (carburettor original replaced by Weber)
